Te27 Crossmember Dimensions

[Bobalenski]

Hi.

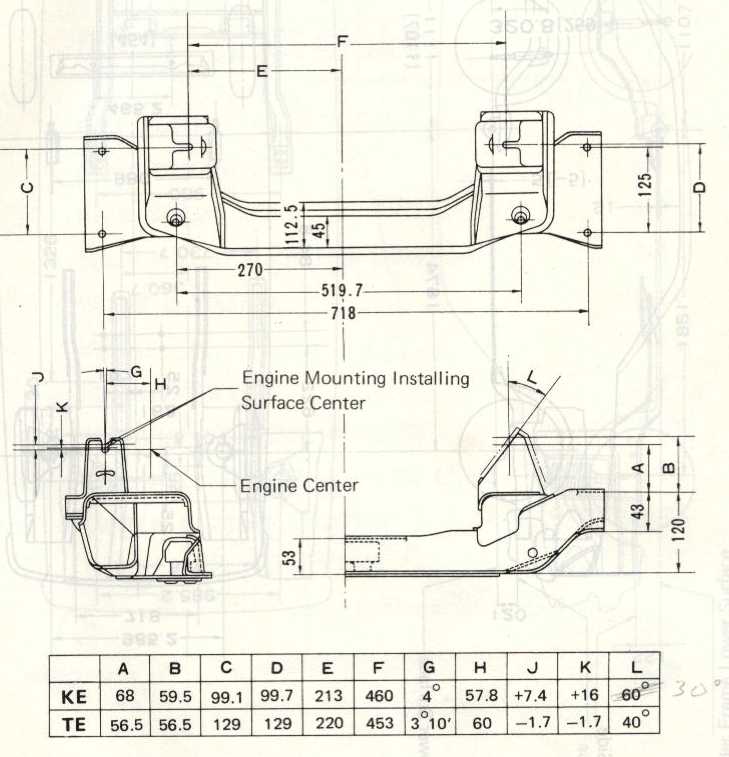

I'm in the process of fitting a 2TG in my KE25 and require some dimensions from the TE27 crossmember. (A) © (D) Thanks. I think the dimensions below are for a TE37 as I seem to be running foul in a few places. Cheers.

[parrot]

I'll try and get them for you by the end of the week.

[Bobalenski]

That would be awesome, thanks Pete. Did that crank work out alright?

[parrot]

Sorry all, has been a hellish couple of weeks.



First of all, the diagram above is definitely not for the KE25/TE27 on the basis that the distance between the crossmember mounting holes (centre to centre) to chassis rails should be 135mm I've measured this on a TE27 crossmember and confirmed it in the 20 series body manual.



Measurement F is correct at 453mm



Measurement D (within limitations of the parrot engineering skills using flat bar, set square and primitive non digital vernier calipers) is166mm









I'm slightly confused by the above diagram as to where measurement B is measured from. I've measured from the top face of the mounting holes to chassis rail, to base of the engine mount (where the rubber mount sits) This measurement I have at 54mm



[Bobalenski]

Thank very much for doing this. I have assumed measurement B as from chassis rail to mount bolt centre, so this puts us about right. I shall put up a progress of how I get on ( unless you want to sell that crossmember ;) ) . Much appreciated. Happy Holidays.
